Fire-Rated Inspection Hatch for Walls and Ceilings | EI30PTL

Kiilax EI30PTL hatches are type-approved for vertical and horizontal structures. They combine durable construction with a neat finish, and the patented quick-fixing mechanism makes installation fast and straightforward.

The hatch can be fitted without tools or additional battens or studs around the opening. Screw or nail fixing to studs or masonry is also possible.

Features | EI30PTL:

Material: hot-dip galvanised steel
Type-approved for vertical and horizontal structures
Powder-coated in RAL 9010, fine-textured matt white
Hinged cover with a 7 mm triangular lock
Airborne sound insulation tested
Custom sizes and colours available to order
Made in Finland – Key Flag product

The key is sold separately.

Contact sales

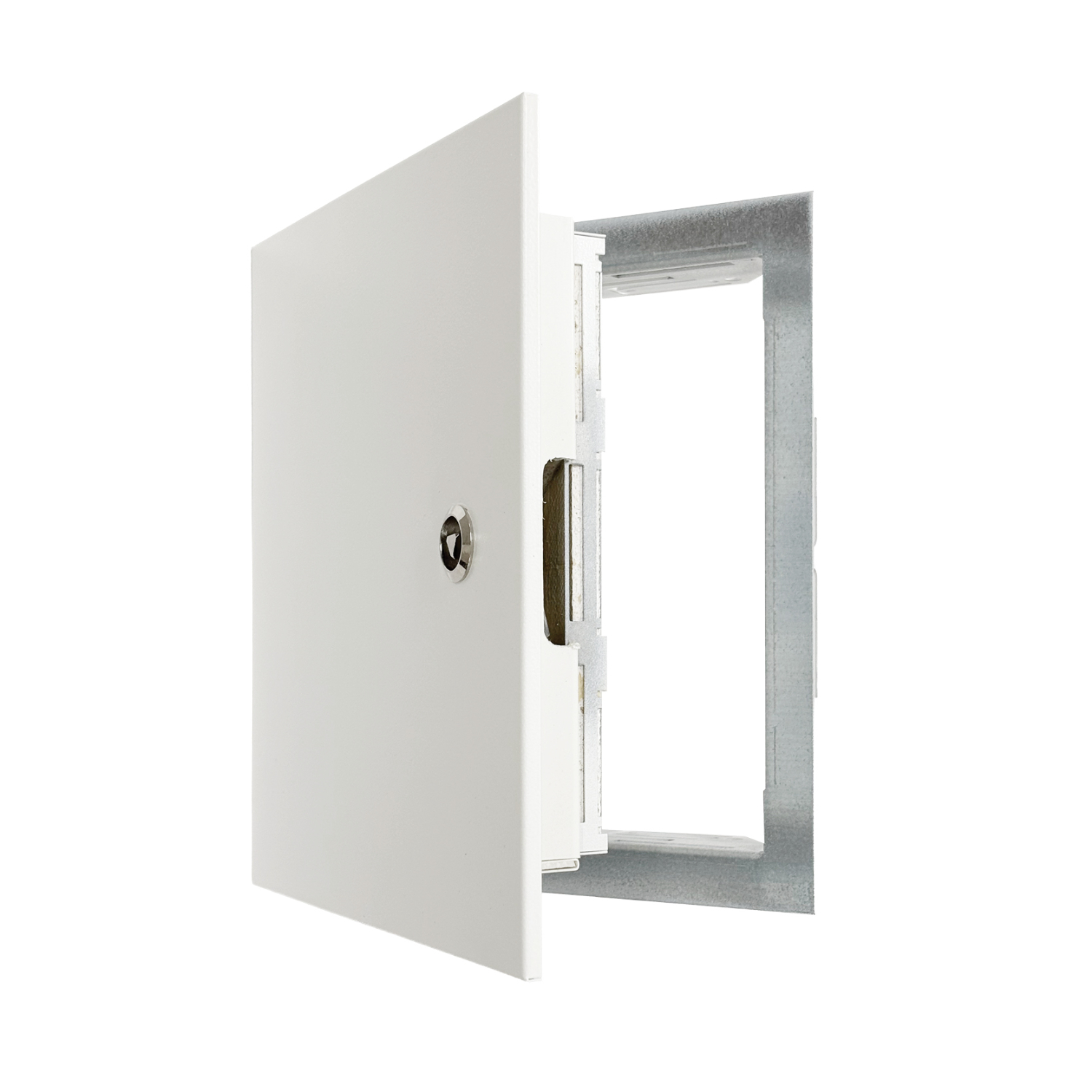

Hinged fire-rated access panel with its cover open in the frame.

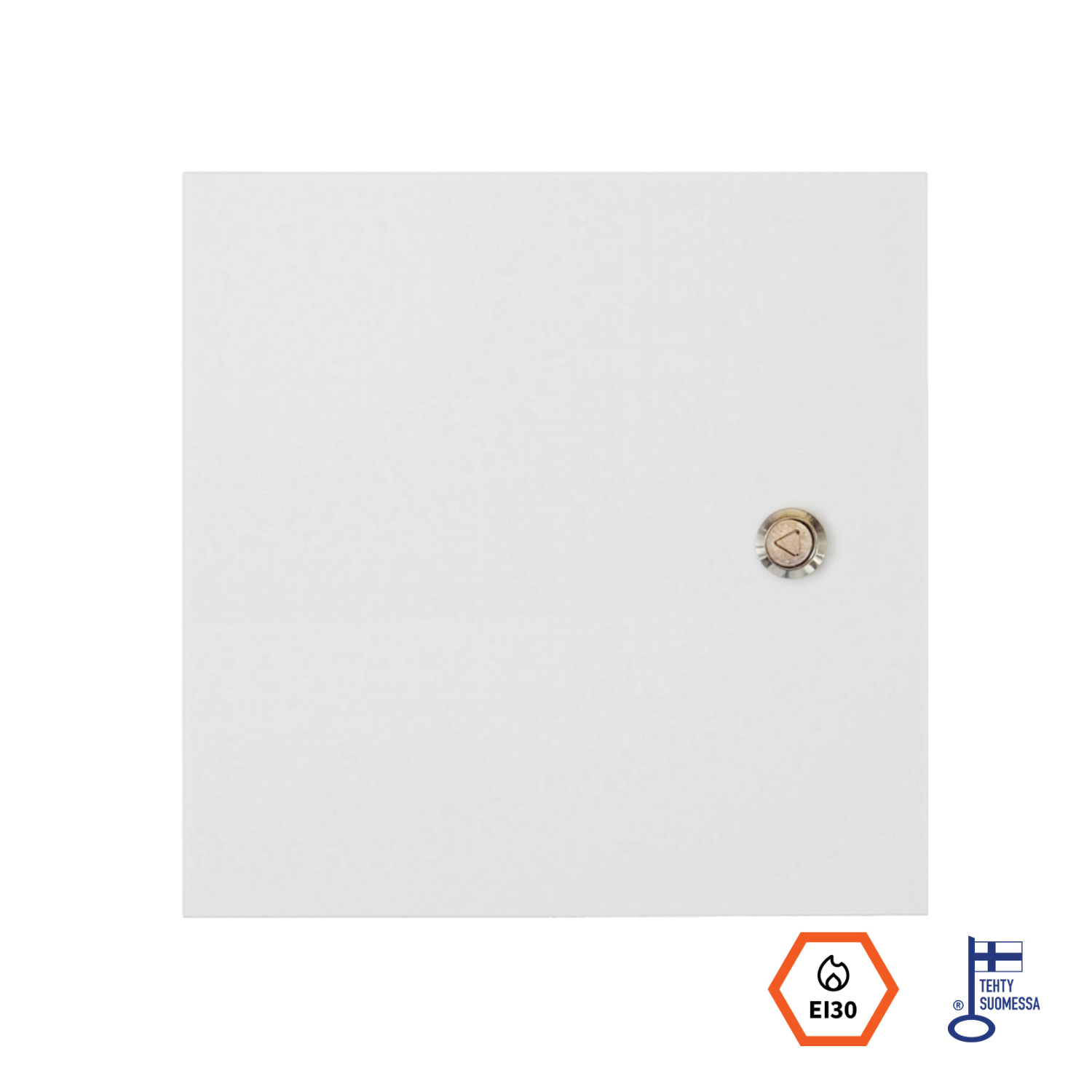

White fire-rated access-panel cover with latch lock, front view.

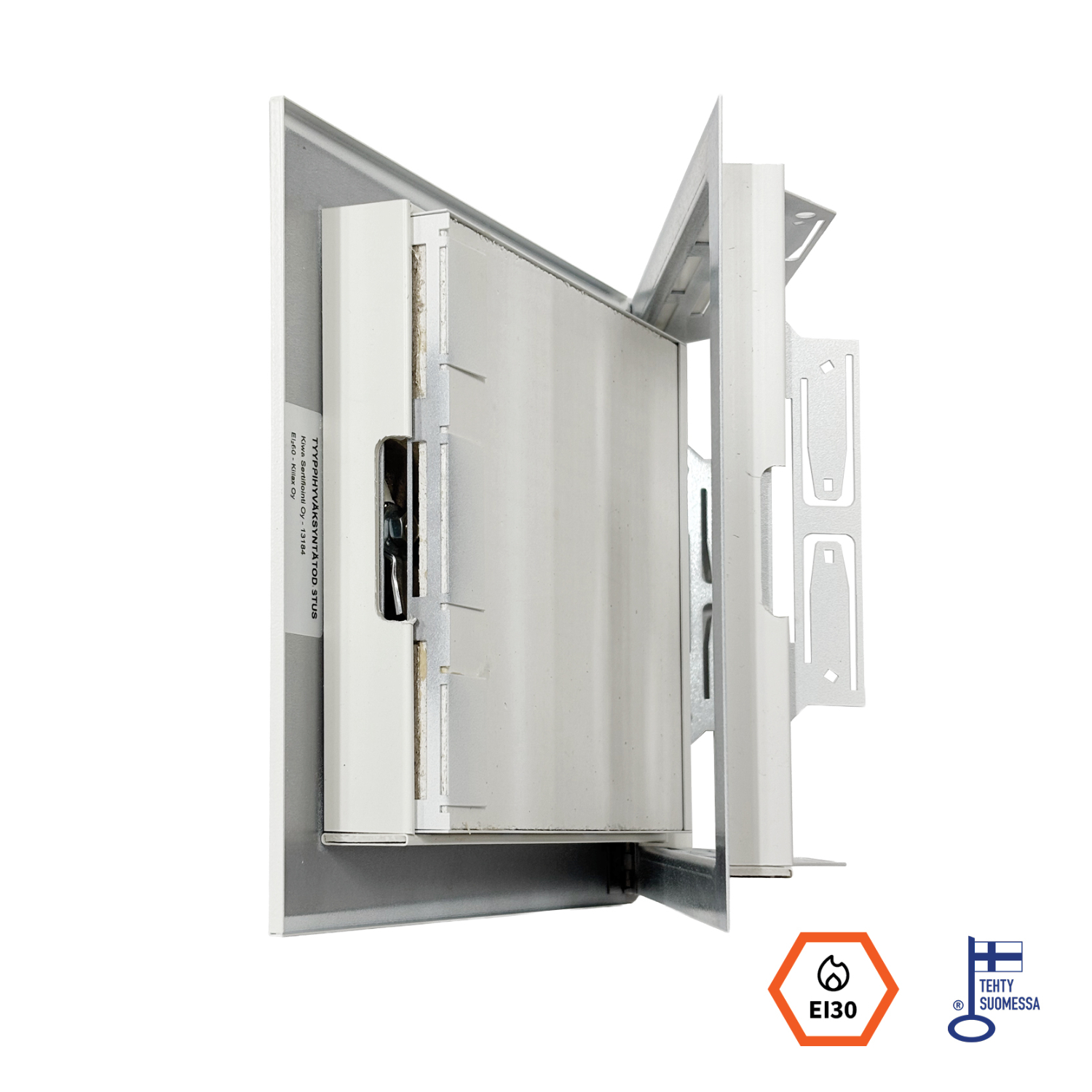

Insulated fire-rated panel cover, frame and hinges in the open position.

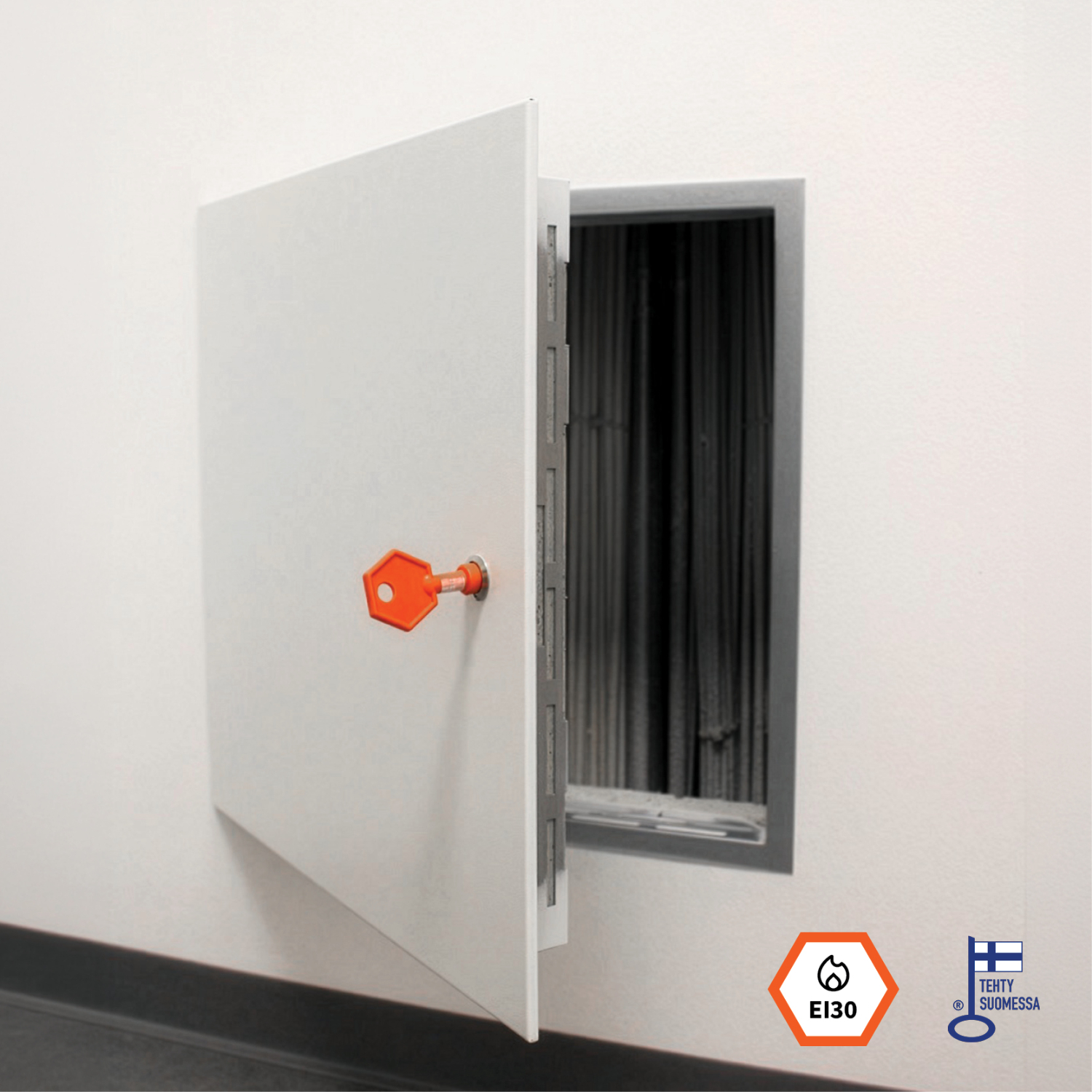

Opening a wall-mounted fire-rated access panel with a key.

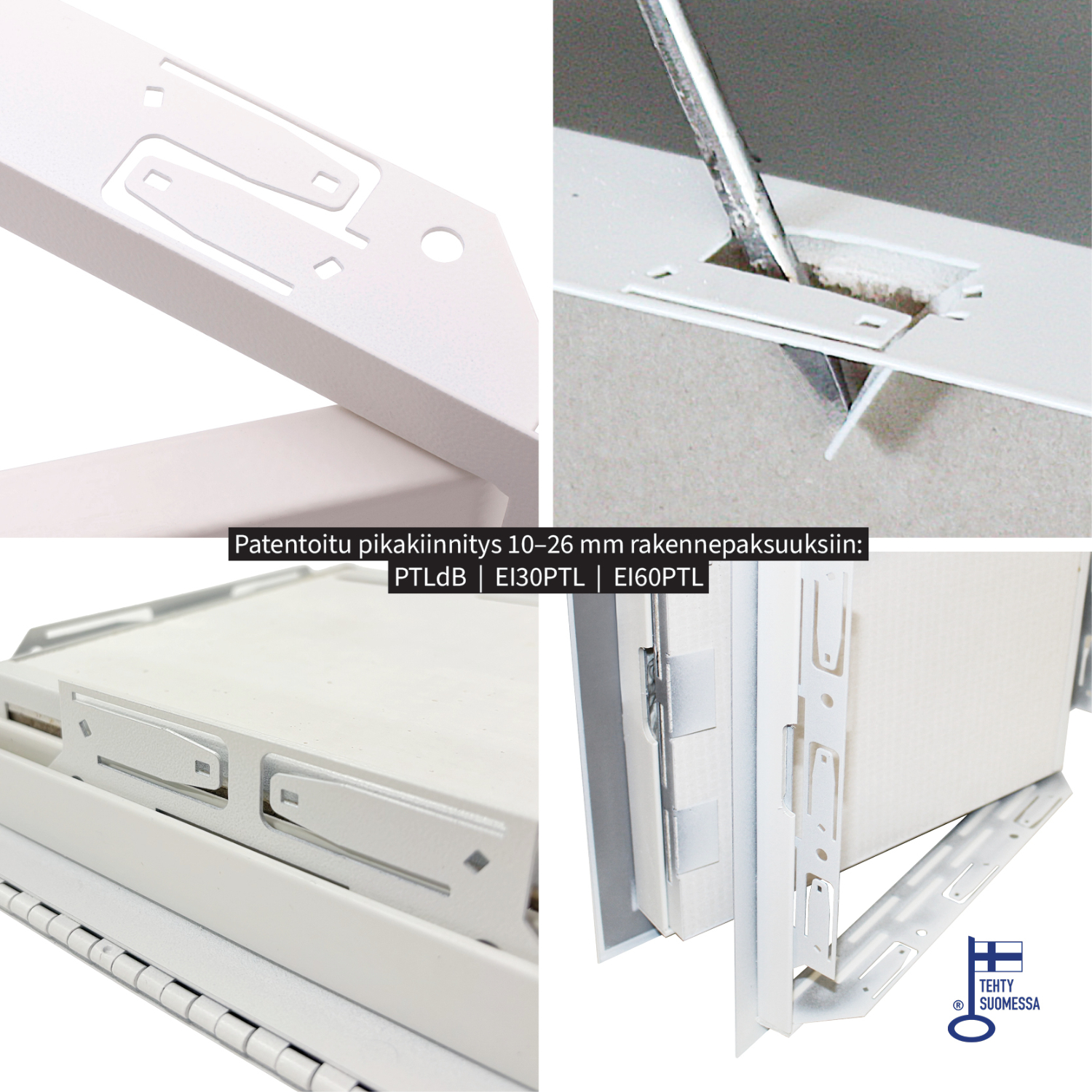

Close-ups of the fire-rated access panel’s quick fixings and hinges.

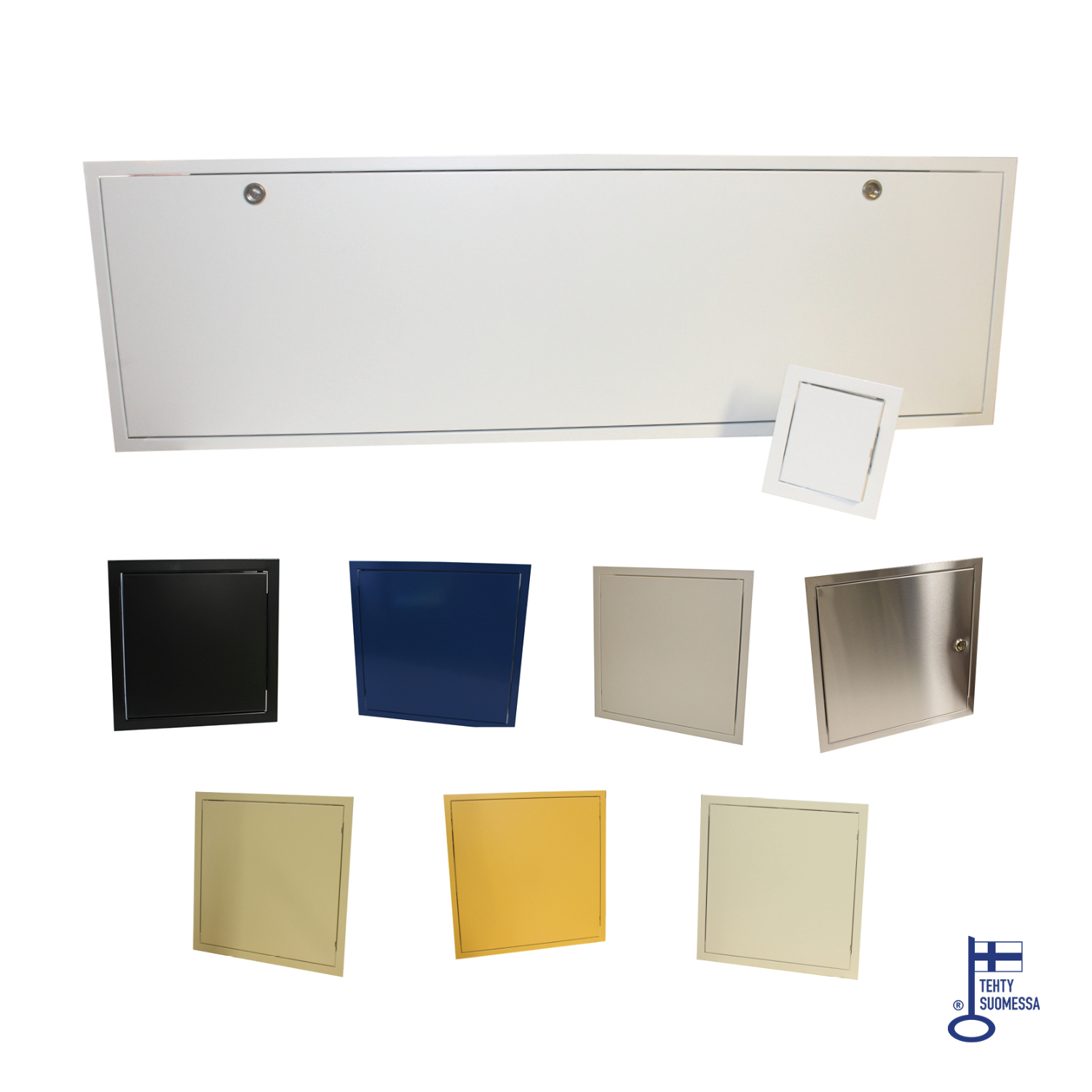

Custom-sized access-panel cover and colour options.

Product code	Installation opening (mm). Hinge along the second dimension (height)
EI30PTL1515	150x150
EI30PTL2020	200x200
EI30PTL2030*	200x300
EI30PTL2040*	200x400
EI30PTL2060*	200x600
EI30PTL2525	250x250
EI30PTL2540*	250x400
EI30PTL3020*	300x200
EI30PTL3030	300x300
EI30PTL3040*	300x400
EI30PTL3050*	300x500
EI30PTL3060*	300x600
EI30PTL4030*	400x300
EI30PTL4040	400x400
EI30PTL4060*	400x600
EI30PTL5050	500x500
EI30PTL5060*	500x600
EI30PTL6040*	600x400
EI30PTL6050*	600x500
EI30PTL6060	600x600
* Check availability

Installation instructions | EI30PTL Type approval | EI30PTL dB Test report

The patented quick installation mechanism is designed for double-layered plasterboard (2×12.5 mm). Additionally, the frame has holes for screw and nail fastening.

Size of the installation opening = nominal size of the hatch
(Hinge along the second dimension (height))
Frame outer dimension = nominal size of the hatch +35 mm
Frame depth = 42 mm inward from the installation surface

Standard model delivered with 7 mm triangular lock. The key is sold separately.
Other lock options are also available, including:

Hole for lock (readiness for installation afterwards)
10 mm triangular lock
ABLOY CL100 cam lock with custom keying

Airborne sound insulation tested | ISO 717-1:1996
EI30PTL2020 / installation size 200×200 - 45 dB Dn,e,w[dB]
EI30PTL6060 / installation size 600×600 - 38 dB Dn,e,w[dB]

Custom sizes and colours available on request
