Inspection Hatch with Magnetic Fixings

Discreet, easy to fit and simple to use | PML

The Kiilax magnetic inspection hatch provides a neat solution for openings of different shapes, including round, square and oval openings. The cover should be approximately 50 mm larger than the opening so the magnetic brackets remain hidden behind it.

The removable cover makes it a practical choice for tight spaces, requiring only 5 mm of clearance in front. The cover can be fitted and removed without tools.

Features | PML:

Quick installation with magnetic fixings
Material: hot-dip galvanised steel
Powder-coated in RAL 9010, fine-textured matt white
Custom sizes and colours available on request
Made in Finland – Key Flag product

Standard fixings and a suspension system are included. The cover can hang safely while you work, so there is no need to carry it down the ladder separately.

Contact sales

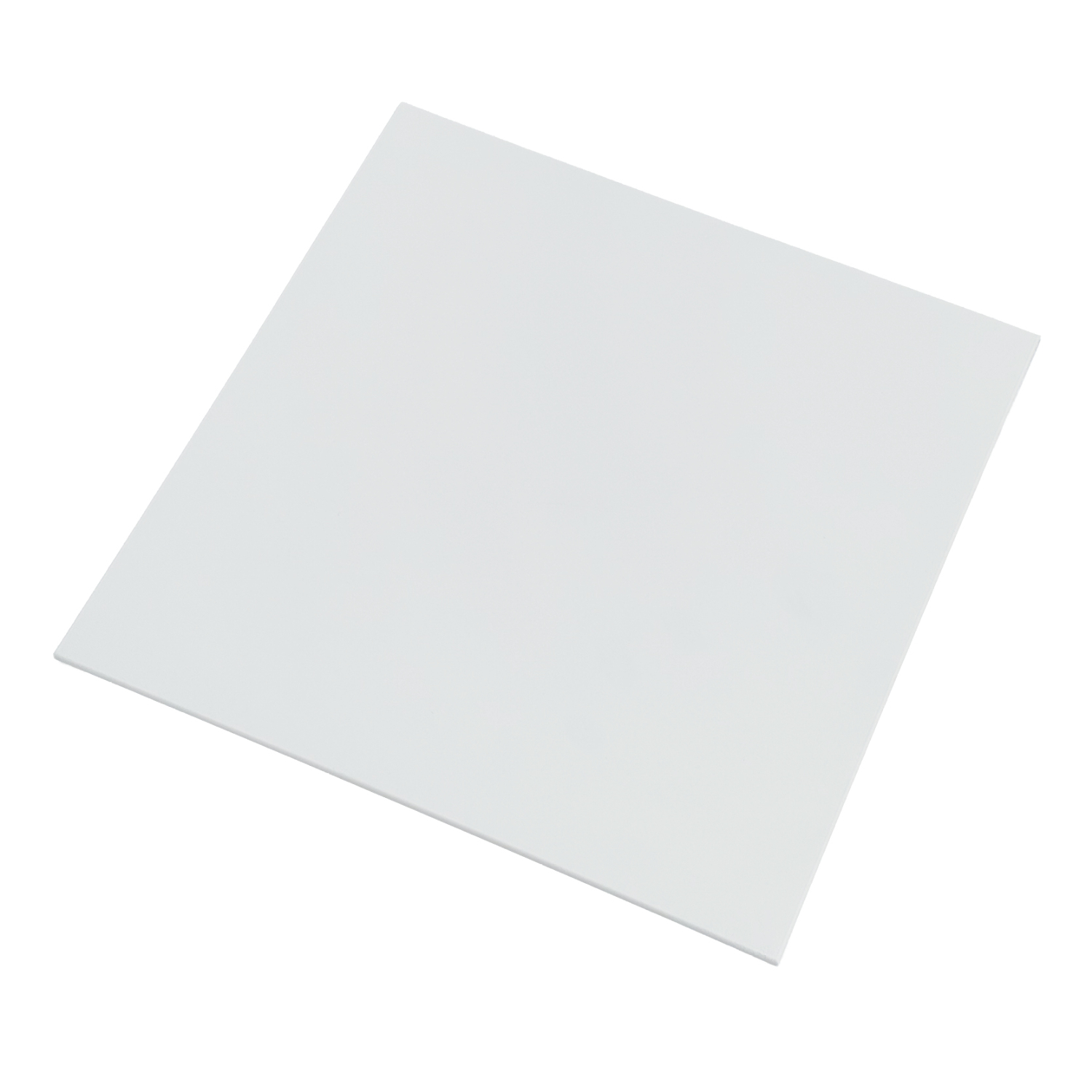

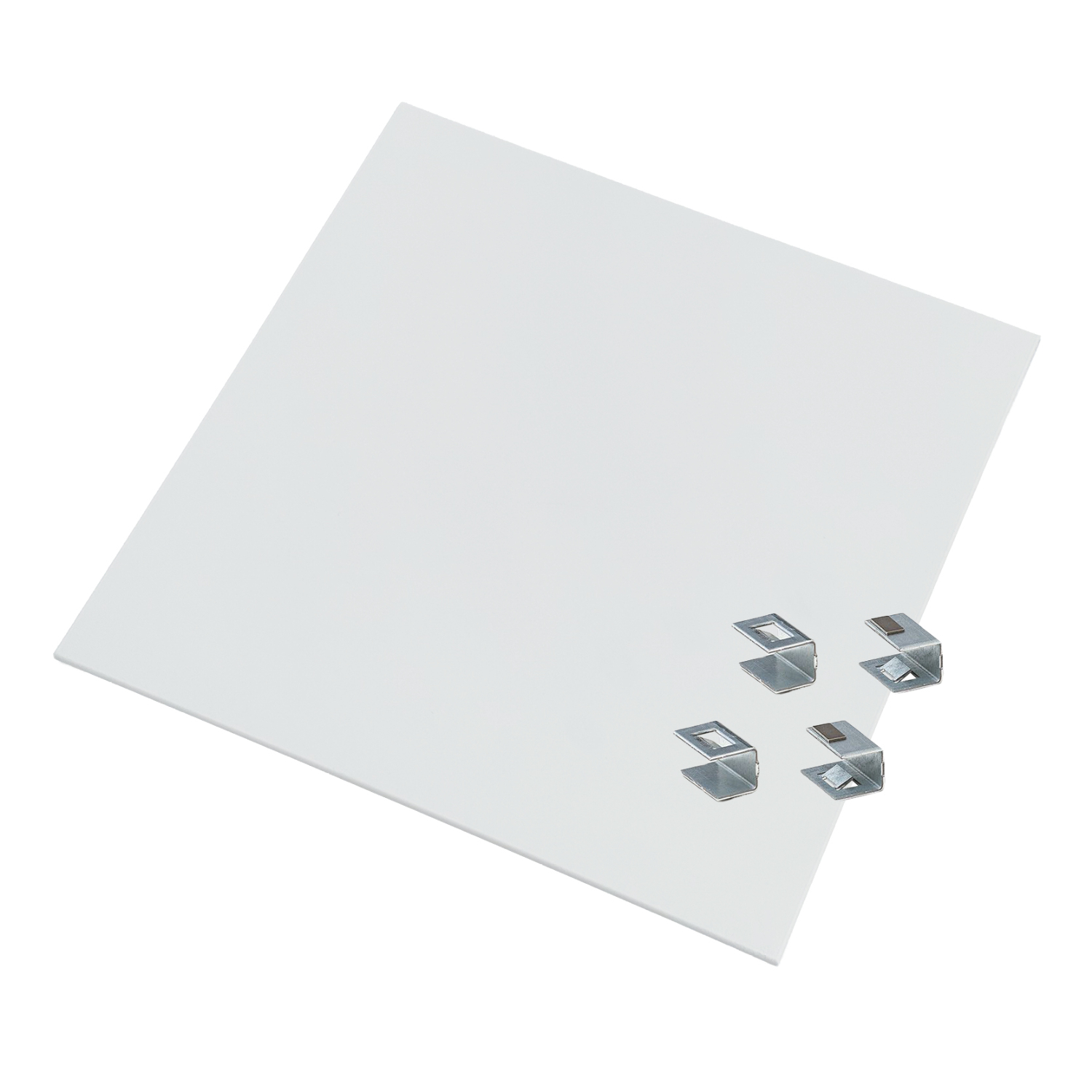

White magnetic access-panel cover and metal mounting brackets.

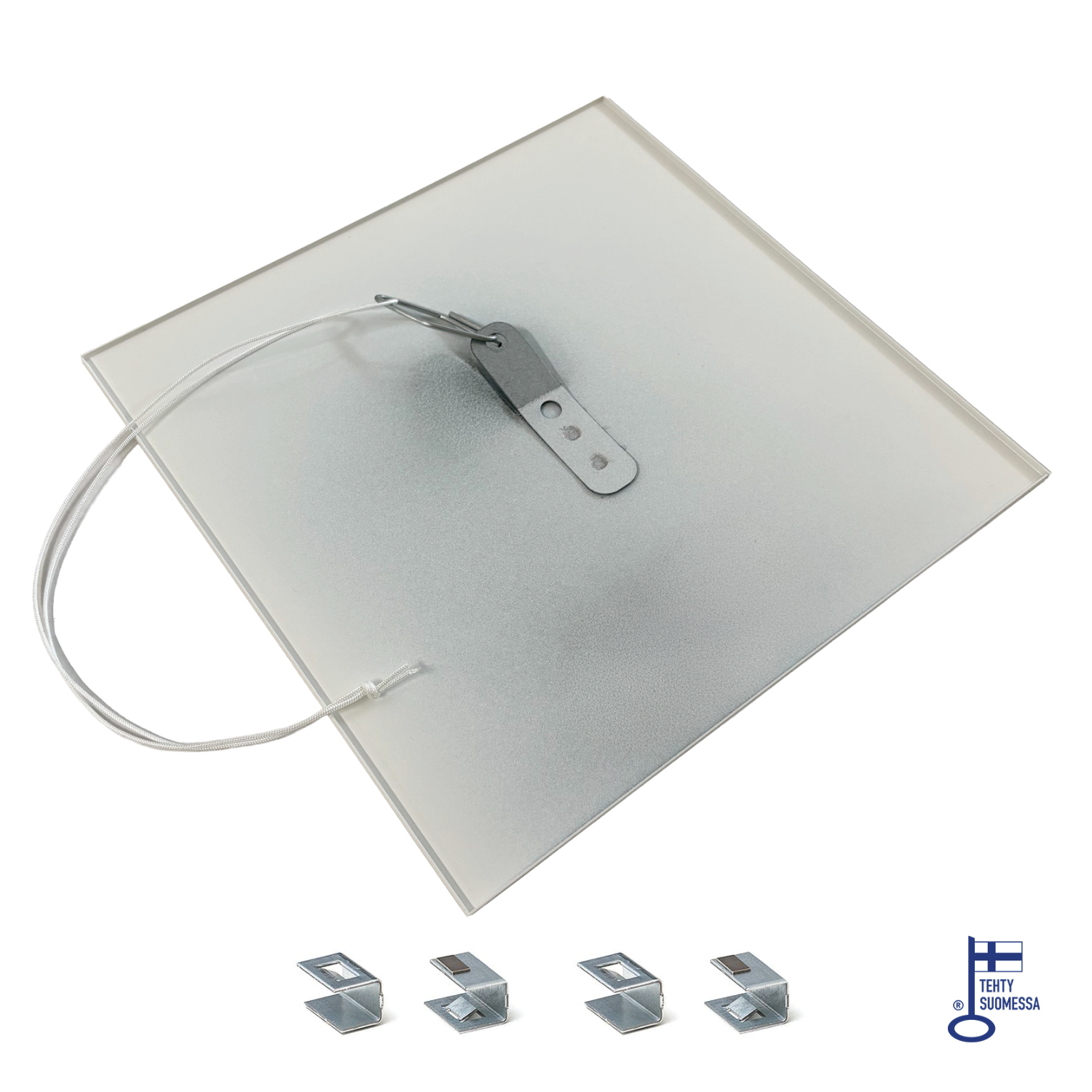

Rear of an access-panel cover with magnetic handle and mounting brackets.

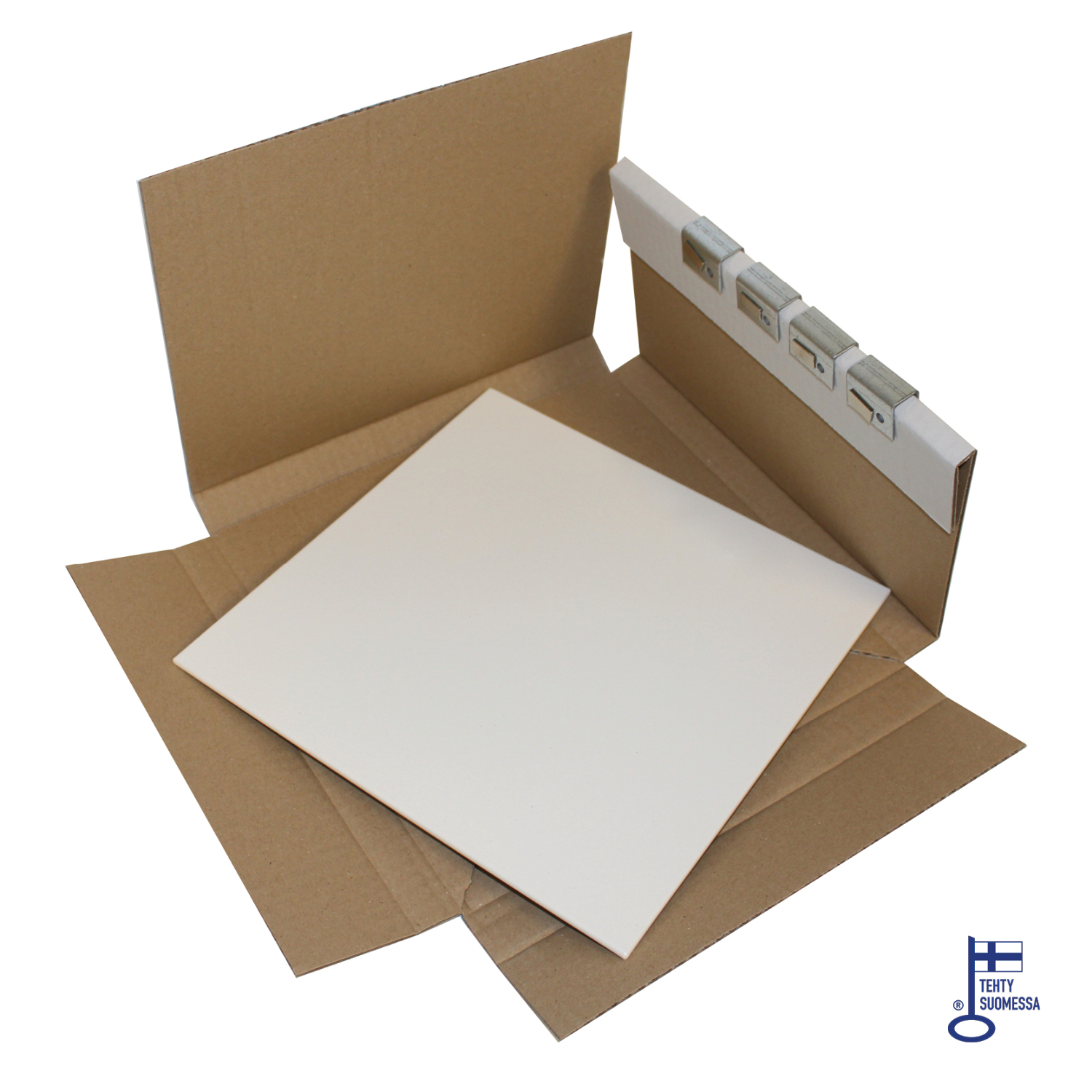

Access-panel cover and brackets in an open cardboard box.

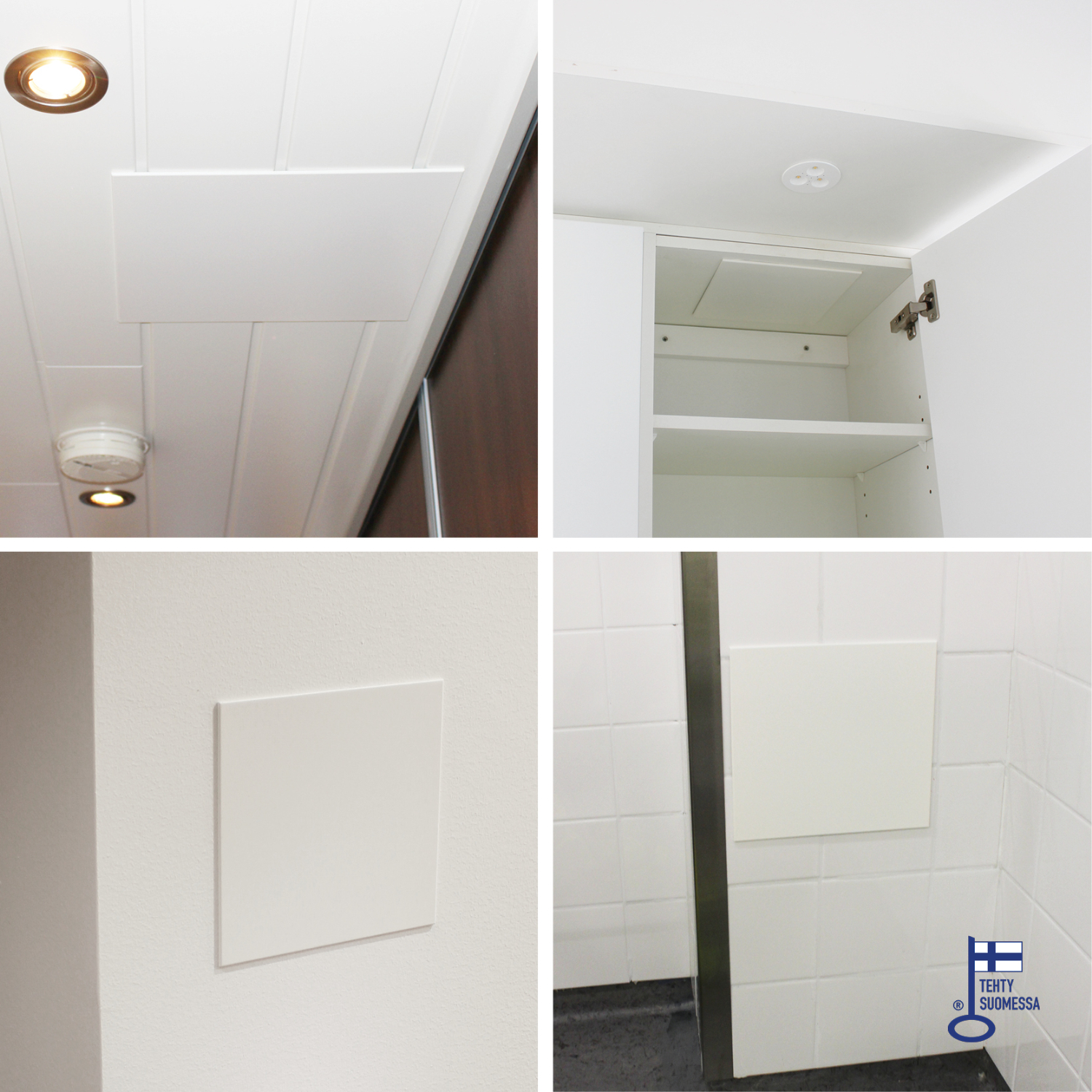

Magnetic access panels installed in ceilings and walls.

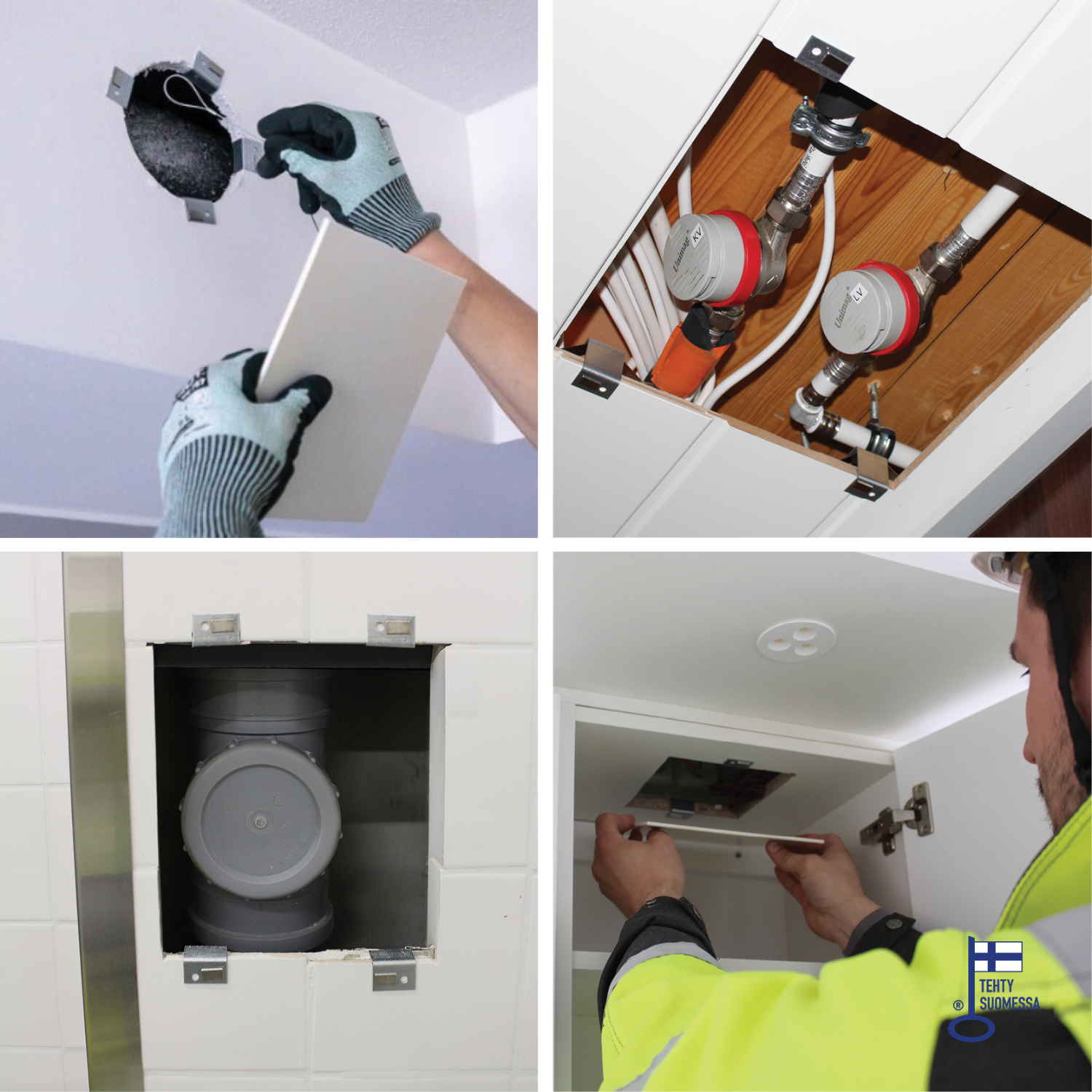

Removing an access-panel cover to service installations above a ceiling.

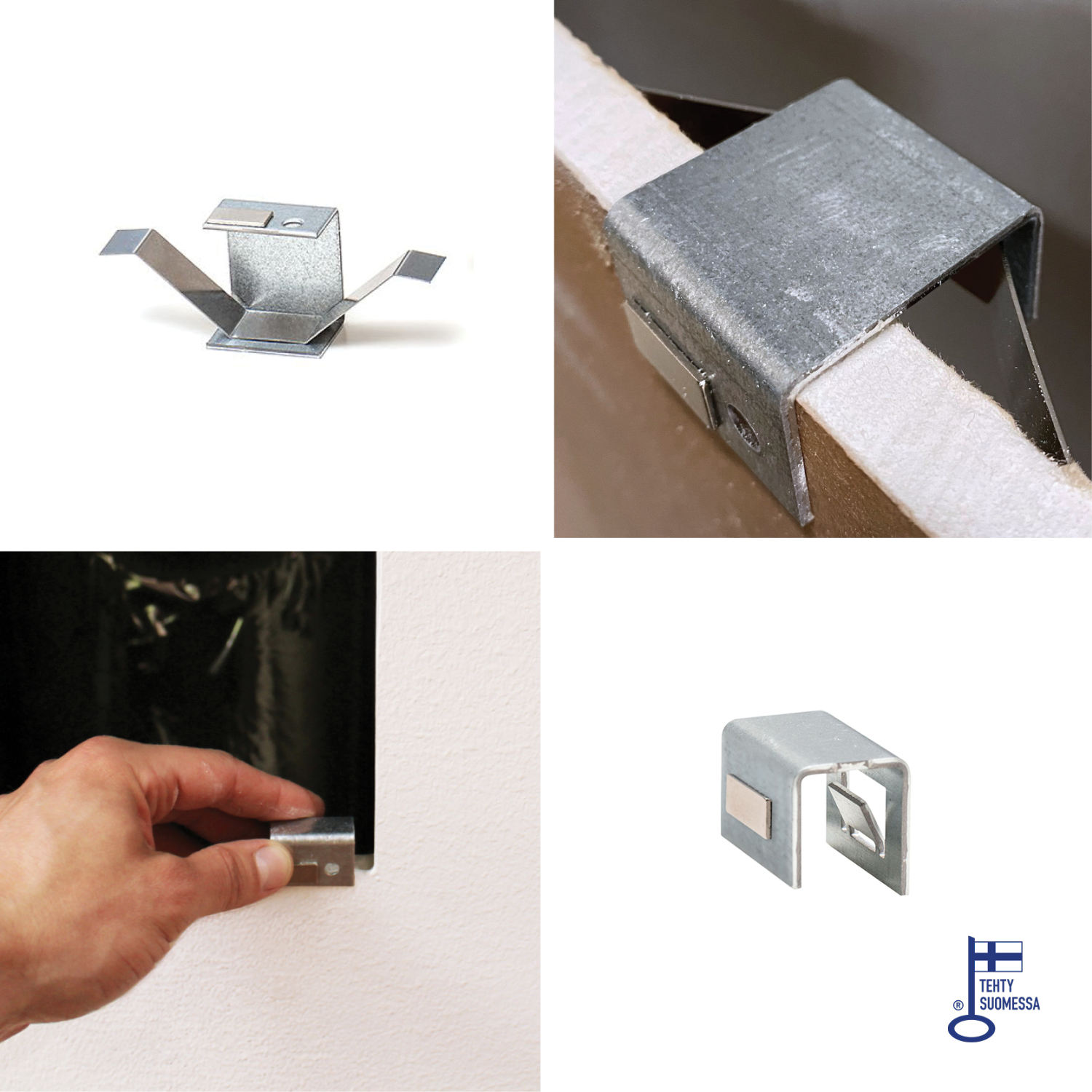

Close-ups of the magnetic handle, cover edge and mounting brackets.

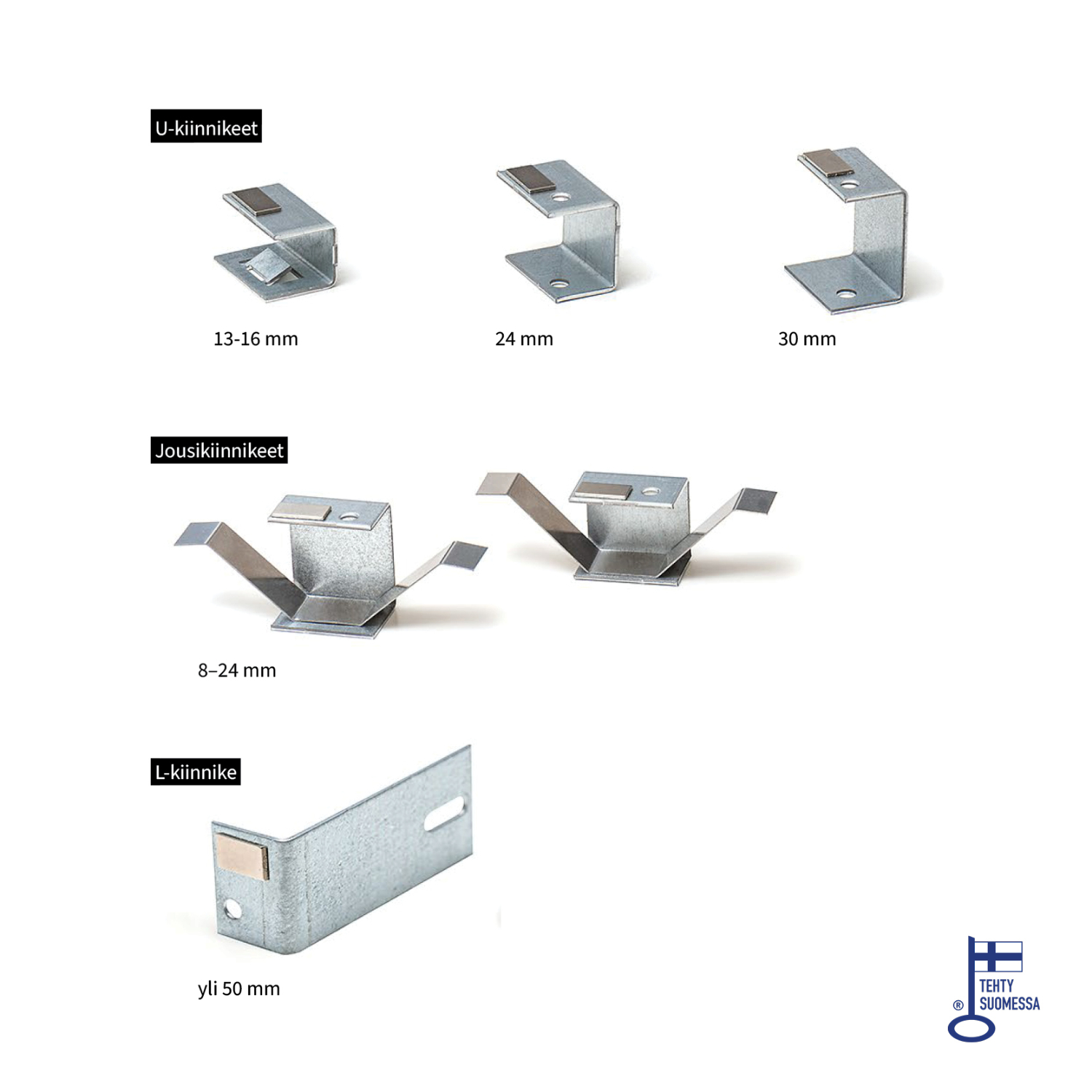

Metal bracket types and installation options.

Product code	Outer dimension (mm) Cover plate size	Installation opening (mm)	Fixings (pcs)
PML1515	150x150	100x100	4
PML2020	200x200	150x150	4
PML2525	250x250	200x200	4
PML2535*	250x350	200x300	4
PML2550*	250x500	200x450	4
PML3030	300x300	250x250	4
PML3535	350x350	300x300	6
PML3545*	350x450	300x400	8
PML3555*	350x550	300x500	8
PML3565*	350x650	300x600	10
PML4040	400x400	350x350	8
PML4545	450x450	400x400	8
PML4565*	450x650	400x600	12
PML5050	500x500	450x450	10
PML5555	550x550	500x500	12
PML6060	600x600	550x550	16
PML6565	650x650	600x600	16
PML7070*	700x700	650x650	20
*Check availability

Installation instructions | PML Special fixings | PML

Cover plate size = nominal size of the access panel
Maximum size of the installation opening =
nominal size of the access panel – 50 mm
Cover plate thickness = 4 mm

There are several easy mounting options for fixing:

Standard fixing for 13–16 mm structure (plasterboard, panel, furniture board)
U24 fixing for 24 mm structure (double-layered plasterboard)
Spring fixing for 8–24 mm structure (thickness varies on the sides of the opening)
L-fixing for thick construction (screwed into concrete or stud from the inside of the opening)

Custom sizes and colours available on request
