Fire-Rated Inspection Hatch, Round | EI30

Round, fire-rated inspection hatches | EI30VIE

Kiilax EI30VIE hatches are designed for round installation openings, such as inspection and maintenance openings in precast concrete service shafts. The magnetic cover conceals the fixing screws and is easy to open and close.

Features | EI30VIE:

Material: hot-dip galvanised steel
Type-approved for vertical masonry structures
Installation depth: 40 mm inward from the mounting surface
Powder-coated in RAL 9010, fine-textured matt white
Custom colours available to order
Made in Finland – Key Flag product

Contact sales

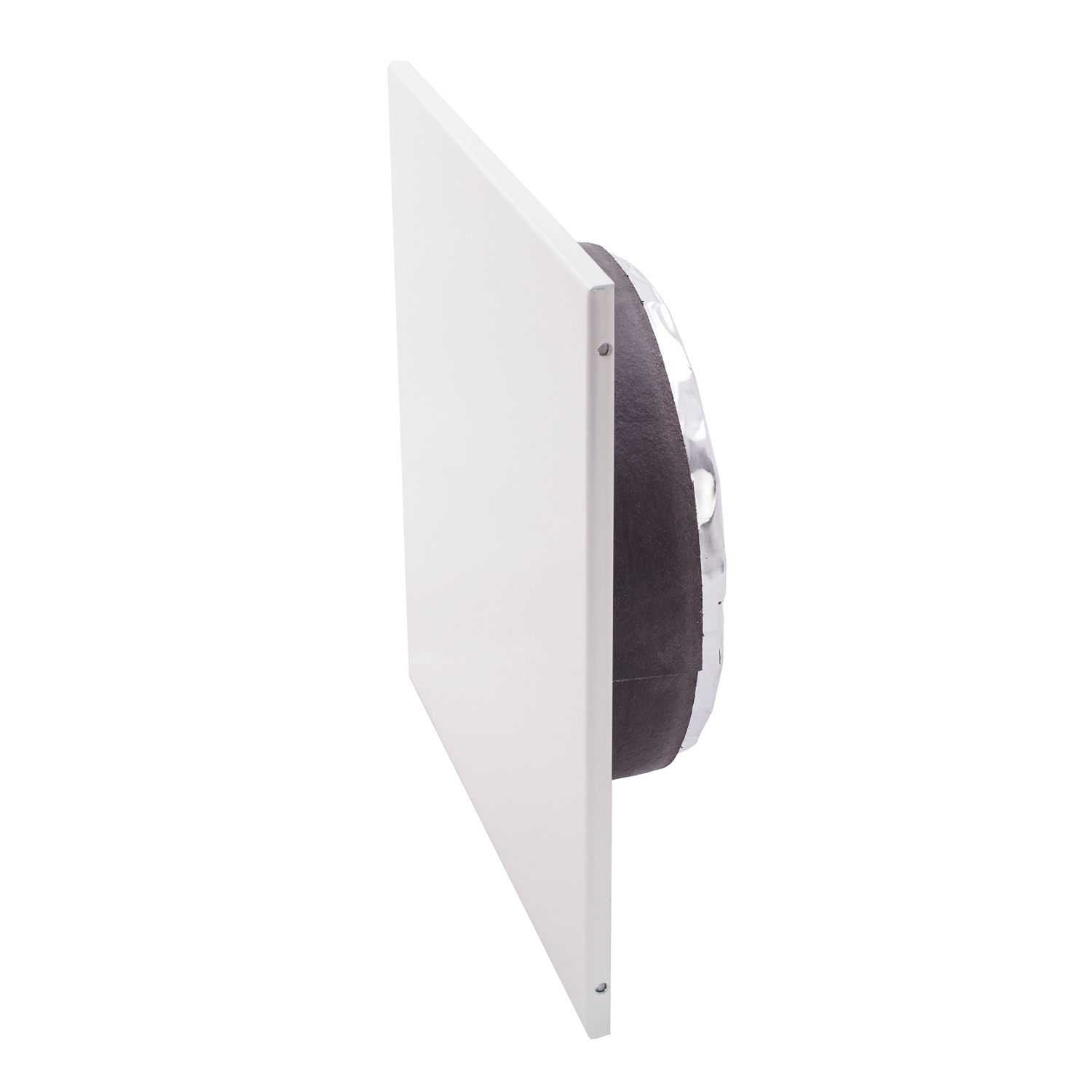

Fire-rated access panel for a round opening with a white square cover, side view.

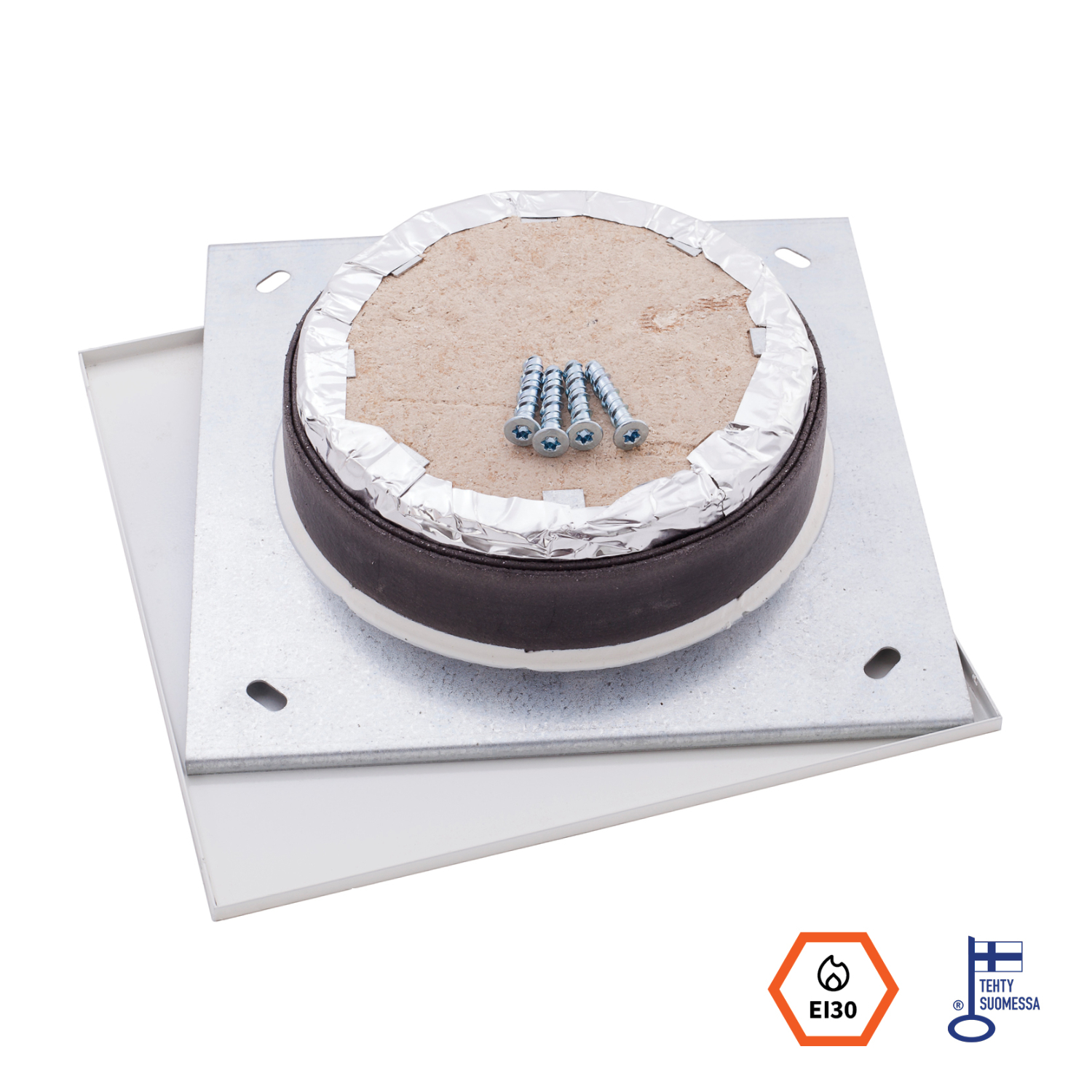

Round insulation section and square frame of the fire-rated panel, rear view.

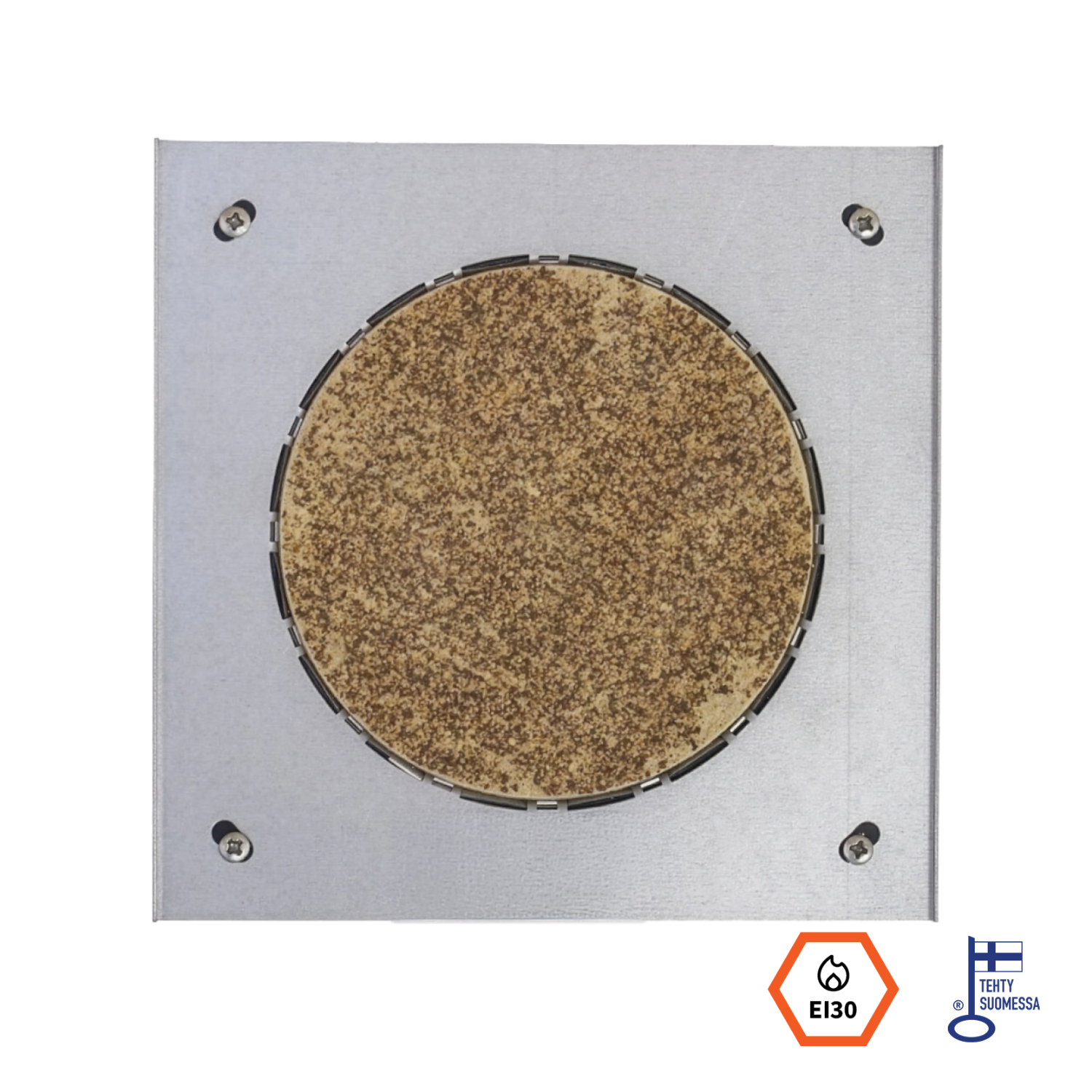

Round insulation surface on the rear of the fire-rated panel.

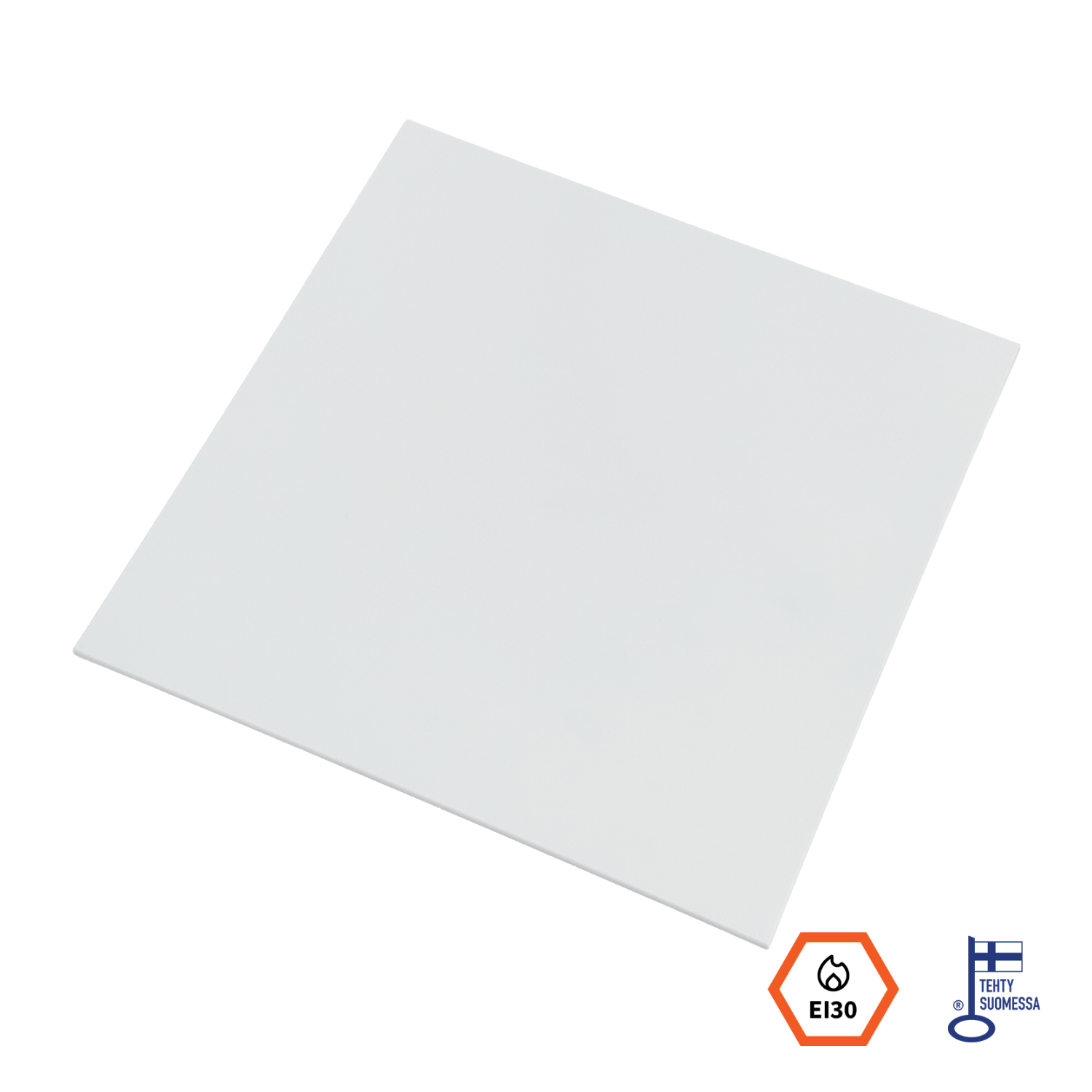

White solid cover of the fire-rated access panel, front view.

Product code	The diameter of the installation opening, nominal size (mm)
VIE100	100
VIE120	120
VIE150	150
VIE160	160

Installation instructions | EI30VIE Type approval | EI30VIE

Diameter of the installation opening = nominal size of the hatch
Cover outer dimensions = 200×200 mm
Frame depth 40 mm inward from the installation surface

The hatch is attached to the vertical masonry structure using the concrete anchors included in the package (M5×40), or with similar steel screws

Custom colours are available to order.
